NEW
Pricing below... All Reduced!!
WOW $550 Inc GST
NO DIES OR STAND INCLUDED WITH BENDER
Model 3 Bender $550 inc gst
Designed for the professional fabricator who requires a dependable, accurate and affordable tube & pipe bender. With rugged all-steel construction and 100% CNC machined parts it has been designed with durability in mind. The fast change bending dies are CNC machined from steel billet and carry a lifetime guarantee against breakage. Round tube from 1/2" to 2" and Square Tube from 1/2" to 1.5" can be bent. The Model 3 uses a high ratio ratchet mechanism to allow the operator to bend the larger sizes of tubing without assistance.
An optional Hydraulic Kit and Degree Ring
Kit (for accurate bending) is also available.
Along with a wide range of dies.
All Die Sets sold separately!

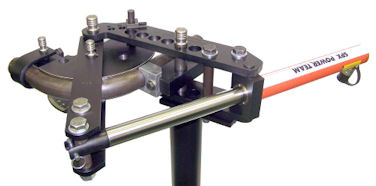

Model 32 Bender Manual $750 inc gst
Hydraulic Version $POA
Features:
- 2 1/2" OD Capacity when used hydraulically
- Over 20% more mechanical leverage than the Model 3.
- Anti-Springback mechanism built-in.
- Massive pins and frame links allow bending 2" OD x .250" wall DOM and up to 1 1/2" solid steel.
- True center pivot hydraulic system increases power and dramatically increases cylinder life.
Hydraulic Version Shown above
NO DIES OR STAND INCLUDED WITH BENDER

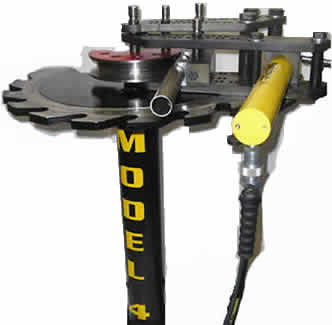

Model 4 Bender Air / Hydro Pump & Ram $2500 inc gst
Designed as a production bender with awesome power, self locking hydraulic operation, and reliable accuracy.
Email us for more info or a Brochure.
View Demonstration Video here:

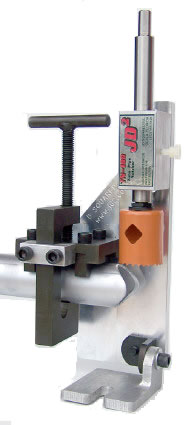

TN-100 Notcher $350
The TN-100 notches 3/4" through to 2" O.D. tubing at angles up to 50 degrees in under 15 seconds. It features a ground and polished stainless steel shaft, rigid bearing block incorporating twin needle bearings and seperate grease seals for maximum rigidity and reliability. This is the most critical part of the hole saw style notcher. The heavy duty frame is made from 1/2" thick 6061-T6 and its entire face has been milled flat. An all position swivel insures easy set up. The TN-100 may be mounted to a drill press or clamped in a vise and used with a 1/2" hand drill.
(Best "Bang for the Buck" in the World)

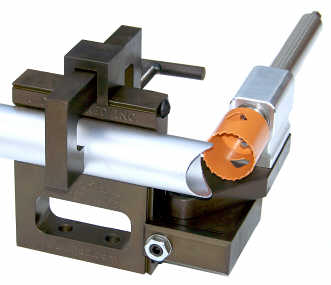

Capacity of
3/4" to 3" OD.
Angles up to 50°
All CNC machined
Heavy duty 1 1/4" thick steel frame.
2-axis adjustable tubing clamp.
Can offset notch up to 1 1/2" vertically.
1" Ground & Polished Stainless Steel shaft
Double sealed needle bearings.
Easy mounting: Bolt or clamp it
to a table or simply clamp it in a vise.
Uses inexpensive bi-metal hole saws.
Requires an ordinary 1/2"
hand drill
