MODEL 3 BENDER
!!WOW!! $550.00
Designed for the professional fabricator who requires a dependable, accurate and affordable tube & pipe bender. With rugged all-steel construction and 100% CNC machined parts it has been designed with durability in mind. The fast change bending dies are CNC machined from steel billet and carry a lifetime guarantee against breakage. Round tube from 1/2" to 2" and Square Tube from 1/2" to 1.5" can be bent. The Model 3 uses a high ratio ratchet mechanism to allow the operator to bend the larger sizes of tubing without assistance.
An optional Hydraulic Kit and Degree Ring
Kit (for accurate bending) is also available.
Along with a wide range of dies.
No Dies included with bender.
 Degree indicator and handle are included, stand and die sets sold separately. |
# 1 selling bender in the USA to race car fabricators. Don't be fooled by copycats. The Model 3 Bender is designed for the professional fabricator who requires a dependable, accurate and affordable tube and pipe bender Tube Capacity 1/2" to 2" diameter. Bend quality guaranteed as good or better than that of any bender under $5000. |
|
RUGGED ALL STEEL CONSTRUCTION - Designed with durability and affordability in mind. All parts are 100% CNC machined. All links are machined from 1/2" thick steel and zinc phosphate plated for corrosion resistance. Fast change bending dies are CNC machined from solid steel billets and carry a lifetime guarantee against breakage. Steel dies eliminate the problems common with other manufacturers' aluminum dies, such as breakage and groove spreading when bending 4130 chromemoly tubing. LARGE CAPACITY - Bends round tubing and pipe from 1/2" to 2" O.D. and square tubing from 1/2" to 1-1/2". AFFORDABLE - At only $660, the Model 3 has been designed to be the ultimate in low cost bending. EASY OPERATION - The Model 3 uses a high-ratio ratchet mechanism to allow you to bend larger tubing sizes comfortably without assistance. For example, the average operator can bend 1 3/4" x .095" wall round mild steel tubing with one hand and 1" x .065" wall tubing with ONE finger. Dies can be changed in under 30 seconds. Bend times are typically in the 30-60 second range for 1" O.D. and above tubing using the ratchet mechanism. Hydraulics may be slightly slower or faster depending on the power unit chosen. HIGHLY ACCURATE - With the degree indicator wheel standard on every new Model 3, accurate bending is simply a matter of watching the pointer until the degree of bend you desire is reached. High contrast yellow markings on a black wheel provide excellent readability while bending. |
|

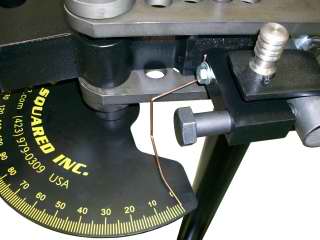

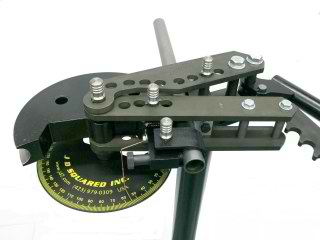

 DEGREE POINTER Standard on every Model 3 is a quick adjust degree indicator wheel. |
 |

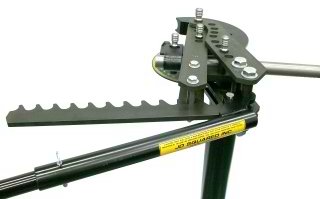

| 36" TELESCOPING HANDLE - Included free with bender. The new design has twice the bearing area of the old style for longer life and provides ample leverage for tube sizes up to 1 3/4".However, if more leverage is desired for tougher to bend applications, you now can simply obtain a longer piece of standard 1" schedule 40 pipe and insert it into the ratchet lever. Comes standard with a pull pin so the handle may be retracted out of the way when not in use saving valuable floor space. |  |

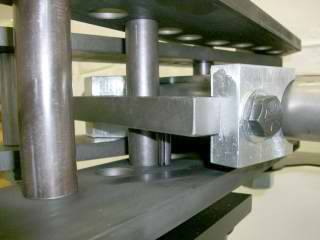

| NEWLY DESIGNED GENERATION 3 FOLLOW BARS - They are half the weight of the older style and utilize bolt-on inserts that are on average 243% stronger. Insert pads are machined to within 1/1000th of a degree to the theoretically perfect angle for optimum bend quality. Inserts are made from a non-galling bearing material to prevent scratching of expensive material. Delrin inserts are also available for use with polished aluminum. A roll pin holds the follow bar in position while loading tubing. With over 600 hours in R&D and tooling preparation, we are confident these are the best die sets on the market today. |  |
 |

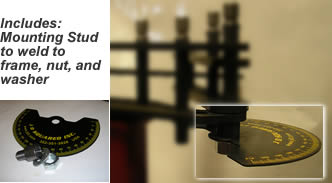

Degree Ring Kit - $ INCLUDED * Please Note * Now included standard with every new Model 3 Bender, so it does not have to be ordered separately. This kit is for those who purchased the bender before it was included. |
 |
Hydraulic Adapter Kit- $150 As easy as the Model 3 is to use, the fact remains that for a large number of bends or when bending very tough tubing, the hydraulic option makes the job easier. Required for upgrading the Model 3 to hydraulics, this mounting hardware will allow a hydraulic cylinder to be mounted in place of the ratchet and handle. ( Bender, pump, and cylinder sold separately) |
 |
10 ton, 14" Cylinder - $795 High-quality single acting hydraulic cylinder |
 |
Air/Hydraulic Pump w/ Hose - $795 Includes 10,000 psi hydraulic hose w/ quick disconnect coupler. Requires an air compressor. |
CALL FOR PRICING ON DIES NOT LISTED
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Some dies available with 7.5" CLR. - Call for pricing
Warranty
All products sold by JD Squared Australia carry a warranty of 1 year from the date of purchase,
limited to normal operation per the Model 3 Instruction Manual
ALL PRICING SUBJECT TO CHANGE WITHOUT NOTICE.
