Model 32 TUBE BENDER & DIE SETS

Shown above is the hydraulic configuration. Die sets, Cylinder , Pumps, hoses and STAND are sold separately.

MODEL 32 Mechanical

Limited Time Only

$750.00

Hydraulic Version available

Dies Not included

Designed for the professional fabricator who requires a dependable, accurate and affordable tube & pipe bender. With rugged all-steel construction and 100% CNC machined parts it has been designed with durability in mind. The fast change bending dies are CNC machined from steel billet and carry a lifetime guarantee against breakage. Round tube from 1/2" to 2" and Square Tube from 1/2" to 1.5" can be bent. The Model 3 uses a high ratio ratchet mechanism to allow the operator to bend the larger sizes of tubing without assistance.
An optional Hydraulic Kit and Degree Ring Kit (for accurate bending) is also available. Along with a wide range of dies.
The Model 32 is essentially a super heavy duty version of the Model 3. The Model 3 is the best selling USA made bender in the world. However, when we initially designed it in the mid 1980's it was a mechanical bender targeted at racecar builders who wanted an affordable bender which still produced high quality bends. Hydraulics wasn't added until years later.

Fast forward 25 years and builders have changed gears. Now, rock crawler builders need to bend 2" o.d. x .250" wall dom tubing and thin wall tubing is now more common then it was back then. We knew the basic principle of the Model 3 was near impossible to beat so the answer was to simply make it better. The Model 32 is the result.
Differences between the two benders are:
  • Frame strength has been more than doubled.
  • 7/8" diameter 100,000 psi alloy pins were upgraded to 1 1/4" diameter.
  • A die locking mechanism was designed that both helps bend thin wall tubing as well as very heavy walled tubing by preventing the die from relaxing when not bending. Springback is the #1 cause of wrinkling thin walled tubing.
  • The Model 32 has been designed for mechanical or hydraulic operation from day one. Its hydraulic swivel block rotates on the cylinders true center axis thereby eliminating side load on the ram during bending. This greatly extends the life of the cylinder. A one piece steel ram yoke with quick disconnect pin is now incorporated as well.
  • An anti-springback ratchet is now included free with the bender. This allowed us to design a new ratchet lever system with more than a 20% reduction in bending effort.
  • Geometry of the bender itself was altered to better take advantage of the new generation 3 followbars thus yielding better bends.
  • The drive links and drive pin is designed to be the weak link. This protects the expensive frames in the case of overload. Believe us, somebody somewhere will try to bend solid 2" diameter steel. We did and true to design, the drive links and drive pin bent first.
  • Drive link bolts and sleeves sizes have increased from 1/2" diameter to 3/4" to handle the extra load.

RUGGED ALL STEEL CONSTRUCTION - Designed with durability and affordability in mind. All parts are 100% CNC machined. The frame links are machined from 3/4" thick steel and the drive links are made from 1/2" thick cold rolled steel. Compared to the Model 3's 7/8" diameter pins the Model 32 utilizes extra large 1 1/4" diameter 100,000 PSI alloy pins to handle the tough bends. Fast change bending dies are CNC machined from solid steel billets and carry a lifetime guarantee against breakage. Steel dies eliminate the problems common with other manufacturers' aluminum dies, such as breakage and groove spreading when bending 4130 chromemoly tubing.

LARGE CAPACITY - Bends round tubing and pipe from 1/2" to 2 1/2" O.D. and square tubing from 1/2" to 1-1/2". This bender is rated to bend 2" o.d. x .250" wall DOM steel tubing. Also capable of solid steel in excess of 1 1/2" diameter.NOTE: To bend round tubing over 2" o.d. x .120" wall, square tubing over 1 1/2" or solids over 1" diameter requires hydraulics.

EASY OPERATION - The Model 32 uses a high-ratio ratchet mechanism to allow you to bend larger tubing sizes comfortably without assistance. For example, the average operator can bend 1 3/4" x .095" wall round mild steel tubing with one hand and 1" x .065" wall tubing with ONE finger. Dies can be changed in under 30 seconds. Bend times are typically in the 30-60 second range for 1" O.D. and above tubing using the ratchet mechanism. Hydraulics may be slightly slower or faster depending on the power unit chosen.

HIGHLY ACCURATE - With the degree indicator wheel standard on every Model 32, accurate bending is simply a matter of watching the pointer until the degree of bend you desire is reached. High contrast yellow markings on a black wheel provide excellent readability while bending.

DIE LOCKING MECHANISM
Standard on every Model 32 is the die locking mechanism. As the die rotates while bending the drive holes in the forming die pass under the lock pin. When the drive hole is below the lock pin, it drops into the drive hole and when pressure is removed from the bender the die's rotation is locked at that position. When bending resumes the ramp machined into the lock pin will automatically lift the pin out of the drive hole. This mechanism combined with the included anti-springback ratchet allows the Model 32 to better bend thin wall tubing as well as the heavier sizes of tubing such as 2" o.d. x .250" wall DOM tubing.
DEGREE POINTER

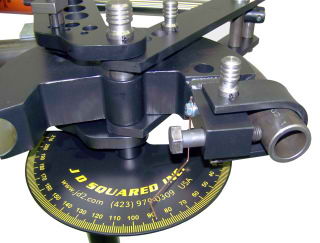

Standard on every Model 32 is a quick adjust degree indicator wheel. Simply loosen the lower nut as shown in the picture to the right, rotate the degree wheel to zero degrees and using finger force only, tighten in position.
36" TELESCOPING HANDLE
Included free with bender. The new design has twice the bearing area of the old style for longer life and provides ample leverage for tube sizes up to 1 3/4".However, if more leverage is desired for tougher to bend applications, you now can simply obtain a longer piece of standard 1" schedule 40 pipe and insert it into the ratchet lever. Comes standard with a pull pin so the handle may be retracted out of the way when not in use saving valuable floor space.

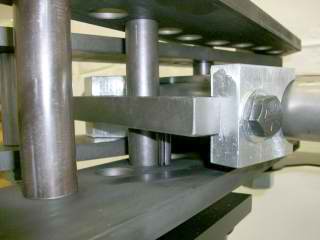

NEWLY DESIGNED GENERATION 3 FOLLOW BARS
They are half the weight of the older style and utilize bolt-on inserts that are on average 243% stronger. Insert pads are machined to within 1/1000th of a degree to the theoretically perfect angle for optimum bend quality. Inserts are made from a non-galling bearing material to prevent scratching of expensive material. Delrin inserts are also available for use with polished aluminum. A roll pin holds the follow bar in position while loading tubing. With over 600 hours in R&D and tooling preparation, we are confident these are the best die sets on the market today.

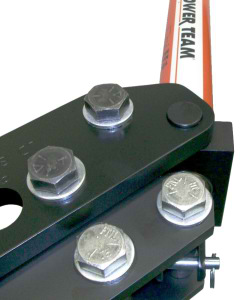

CENTER PIVOT HYDRAULIC CYLINDER
The hydraulic swivel block rotates on the cylinders true center axis thereby eliminating side load on the ram during bending. This greatly extends the life of the cylinder. A one piece steel ram yoke with quick disconnect pin is now incorporated as well.



CALL FOR PRICING ON DIES
Part # Description Degree Bend Min. Wall Thickness  Price

M32NB20 M32B Die Set 20NB 26.7mm OD (76.2R-180) 180 1.6mm  $395
M32NB25 M32B Die Set 25NB 33.7mm OD (114.3R-180) 180 1.6mm  $410
M32NB32 M32B Die Set 32NB 42.4mm OD (114.3R-180) 180 2.4mm  $495
M32NB40 M32B Die Set 40NB 48.3mm OD (165.1R-180) 180 2.6mm  $595
M32NB50 M32B Die Set 50NB 60.5mm OD (165.1R-180) 180 2.6mm $795

Part # Description Degree Bend Min. Wall Thickness

Price


302100 M32B Round Tube Die Set - 1/2" (2.25-180) 180 .035"
302101 M32B Round Tube Die Set - 1/2" (3-180) 180 .035"
302102 M32B Round Tube Die Set - 5/8" (2.25-180) 180 .049"
302103 M32B Round Tube Die Set - 5/8" (3-180) 180 .049"
302104 M32B Round Tube Die Set - 3/4" (2.25-180) 180 .058"
302105 M32B Round Tube Die Set - 3/4" (3-180) 180 .058"
302106 M32B Round Tube Die Set - 3/4" (3.5-180) 180 .058"
302107 M32B Round Tube Die Set - 3/4" (4.5-180) 180 .058"
302109 M32B Round Tube Die Set - 3/4" (5.5-180) 180 .058"
302117 M32B Round Tube Die Set - 7/8" (3-180) 180 .058"
302118 M32B Round Tube Die Set - 7/8" (4.5-180) 180 .058"
302120 M32B Round Tube Die Set - 7/8" (5.5-180) 180 .058"
302122 M32B Round Tube Die Set - 1" (3-180) 180 .058"
302123 M32B Round Tube Die Set - 1" (3.5-180) 180 .058" $385
302124 M32B Round Tube Die Set - 1" (4.5-180) 180 .058"
302126 M32B Round Tube Die Set - 1" (5.5-180) 180 .058"
302136 M32B Round Tube Die Set - 1 1/8" (3.5-180) 180 .083"
302137 M32B Round Tube Die Set - 1 1/8" (4.5-180) 180 .058" $410
302139 M32B Round Tube Die Set - 1 1/8" (5.5-180) 180 .058"
302141 M32B Round Tube Die Set - 1 1/8" (6.5-180) 180 .058"
302143 M32B Round Tube Die Set - 1 1/4" (3.5-180) 180 .083"
302144 M32B Round Tube Die Set - 1 1/4" (4.5-180) 180 .058" $410
302146 M32B Round Tube Die Set - 1 1/4" (5.5-180) 180 .058"
302148 M32B Round Tube Die Set - 1 1/4" (6.5-180) 180 .058"
302159 M32B Round Tube Die Set - 1 3/8" (4.5-180) 180 .095"
302161 M32B Round Tube Die Set - 1 3/8" (5.5-180) 180 .065"
302163 M32B Round Tube Die Set - 1 3/8" (6.5-180) 180 .065"
302165 M32B Round Tube Die Set - 1 3/8" (7.5-180) 180 .058"
302167 M32B Round Tube Die Set - 1 1/2" (4.5-180) 180 .095" $475
302169 M32B Round Tube Die Set - 1 1/2" (5-180) 180 .058"
302170 M32B Round Tube Die Set - 1 1/2" (5.5-180) 180 .083"
302172 M32B Round Tube Die Set - 1 1/2" (6.5-180) 180 .058" $495
302174 M32B Round Tube Die Set - 1 1/2" (7.5-180) 180 .058"
302176 M32B Round Tube Die Set - 1 5/8" (4.5-180) 180 .095"
302178 M32B Round Tube Die Set - 1 5/8" (5.5-180) 180 .083" $495
302180 M32B Round Tube Die Set - 1 5/8" (6.5-180) 180 .083"
302182 M32B Round Tube Die Set - 1 5/8" (7.5-180) 180 .058"
302192 M32B Round Tube Die Set - 1 3/4" (5.5-180) 180 .095" $495
302194 M32B Round Tube Die Set - 1 3/4" (6.5-180) 180 .083"
302196 M32B Round Tube Die Set - 1 3/4" (7.5-180) 180 .058"
302198 M32B Round Tube Die Set - 1 7/8" (6.5-180) 180 .095"
302200 M32B Round Tube Die Set - 1 7/8" (7.5-180) 180 .095"
302208 M32B Round Tube Die Set - 2" (6.5-180) 180 .095" $595
302210 M32B Round Tube Die Set - 2" (7.5-180) 180 .095"
302212 M32B Round Tube Die Set - 2 1/8" (6.5-180) 180 .095"
302214 M32B Round Tube Die Set - 2 1/8" (7.5-180) 180 .095"
302216 M32B Round Tube Die Set - 2 1/4" (6.5-180) 180 .095"
302218 M32B Round Tube Die Set - 2 1/4" (7.5-180) 180 .095"
302220 M32B Round Tube Die Set - 2 3/8" (6.5-180) 180 .095"
302222 M32B Round Tube Die Set - 2 3/8" (7.5-180) 180 .095"
302230 M32B Round Tube Die Set - 2 1/2" (6.5-180) 180 .095"
302232 M32B Round Tube Die Set - 2 1/2" (7.5-180) 180 .095"

Part # Description ( METRIC Square Die Sets ) Degree Bend Min. Wall Thickness Price
M3SQ20 M3B Die Set 20mm Square (76.2R-180) 180 1.6mm
M3SQ25 M3B Die Set 25mm Square (114.3R-180) 180 1.6mm
M3SQ30 M3B Die Set 30mm Square (114.3R-180) 180 2.4mm
M3SQ40 M3B Die Set 40mm Square (165.1R-180) 180 2.5mm






* Some dies available with 7.5" CLR. - Call for pricing

Warranty
All products sold by JD Squared Australia carry a warranty of 1 year from the date of purchase,
limited to normal operation per the Model 32 Instruction Manual

ALL PRICING SUBJECT TO CHANGE WITHOUT NOTICE.
